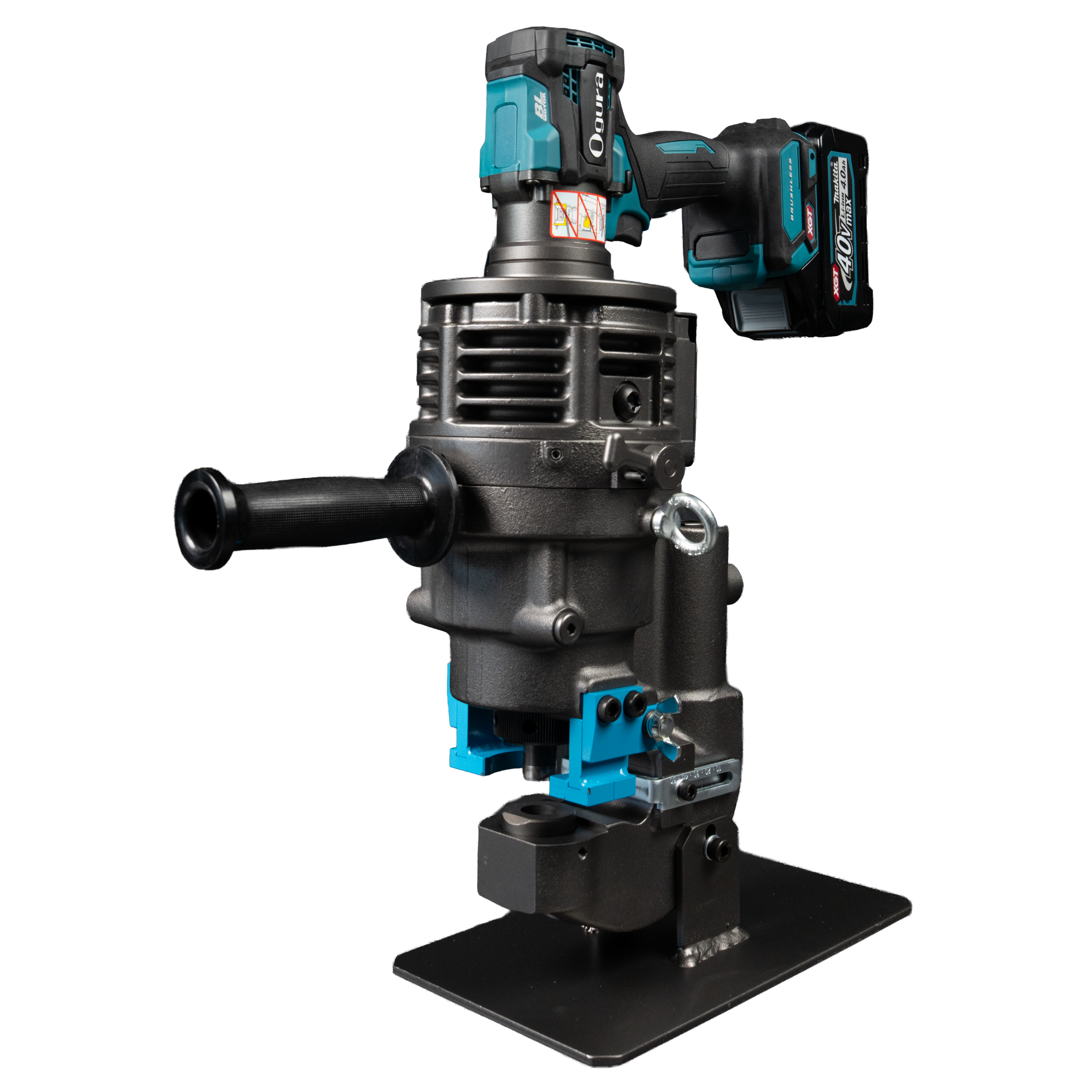

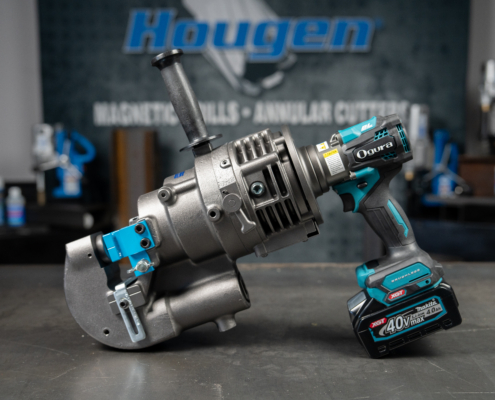

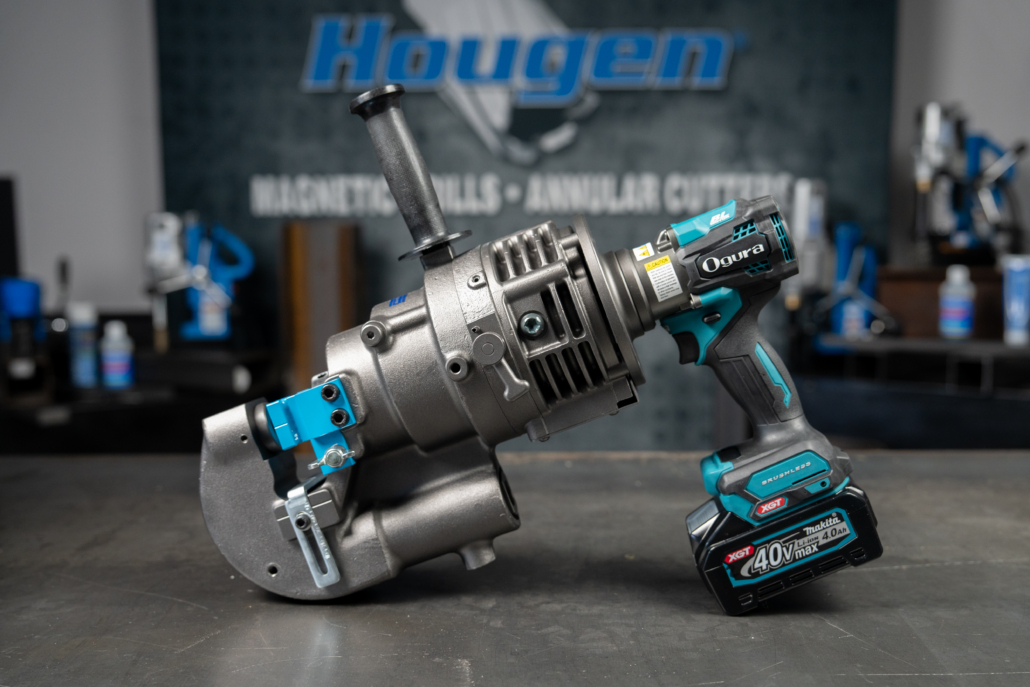

76006PR 40V Cordless Hole Puncher

Our most powerful model of hole puncher meets the convenience and portability of battery power. With its 40 volt battery, the 76006PR generates 26.9 tons of pressure and will produce up to 15/16″ diameter round holes. In approximately 4 seconds, the 76006PR can punch through material up to 1/2″ thick. Like all Hougen-Ogura hole punchers, its single body design makes it easy to use anywhere. The operator handle rotates 360 degrees and the handle can be mounted in 2 positions in order to punch holes where you need them. Line up the punch with the speed control feature, so you know exactly where the hole will be made. The unit also has eye bolts on both sides for easy attachment of a lift assist or a counter-balance for improved ergonomics.

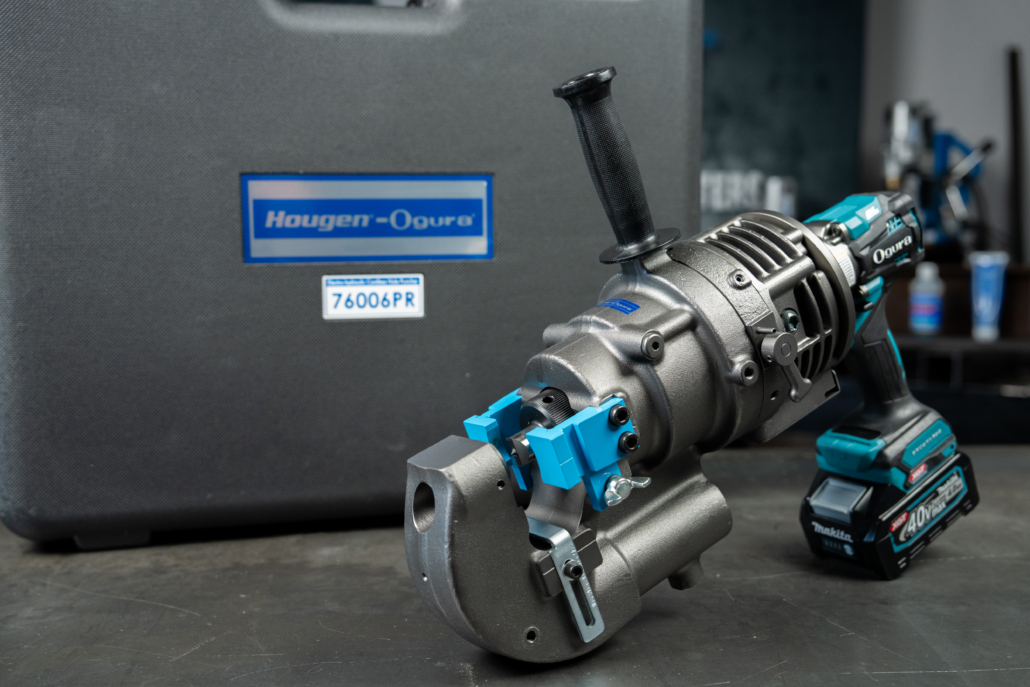

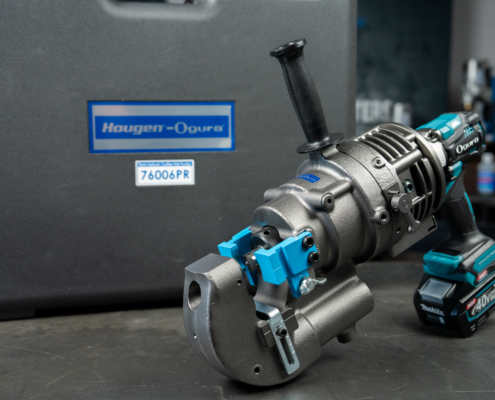

Includes: Carry case, eye bolts, 13/16″ punch & die and tool kit.

Punch Round & Oblong Holes in These Materials

Hougen-Ogura Punches are designed for mild & structural steel, but can be used in other materials. Using in stainless or other materials significantly reduces the capacity. Consult Hougen Technical Support for questions about your particular application: (810) 635-7111

PRESSURE26.9 tons
APPROX PUNCHING TIME4 seconds
MAX HOLE SIZE - ROUND15/16" (23.8 mm)
MAX MATERIAL THICKNESS - ROUND1/2 " (12.7 mm)
MAX HOLE SIZE - OBLONG11/16" x 13/16" (18 mm x 21 mm)
MAX MATERIAL THICKNESS - OBLONG1/2" (12.7 mm)
MAX THROAT DEPTH1-31/32" (50 mm)
BATTERYModel: BL4025 2.5Ah Voltage: 36V (40V max)
WEIGHT52.9 lbs (24 kg)
SHIPPING WEIGHT68 lbs (30.84 kg)
DIMENSIONS19.09" L x 8.93" W x 17.36" H (485 mm L x 227 mm W x 441 mm H)

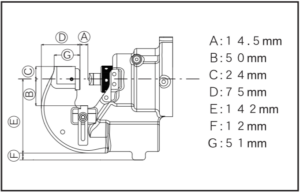

-ABCDEFG
76006PR.571.97.942.955.590.472.00

Measurements in inches

Videos

TIME SAVING

Punching holes is quicker than drilling.

40V BATTERY

Battery powered for portability and convenience.

360 HANDLE ROTATION

Handle rotates 360 degrees for ease of use.

ACCURACY

Precise holes exactly where you need them.
