ANNULAR CUTTERS

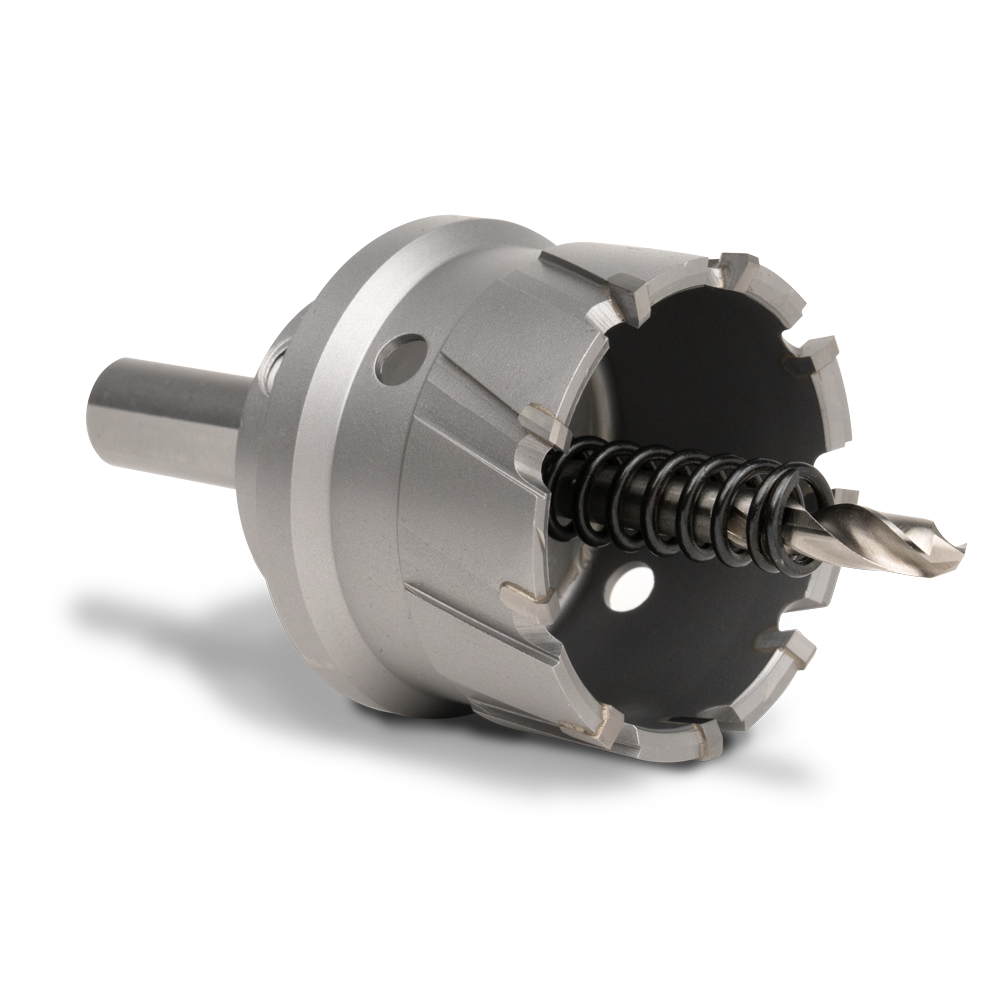

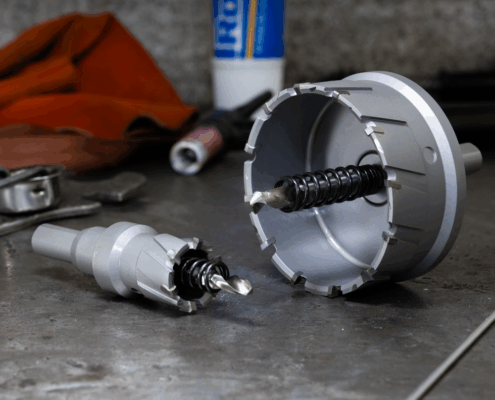

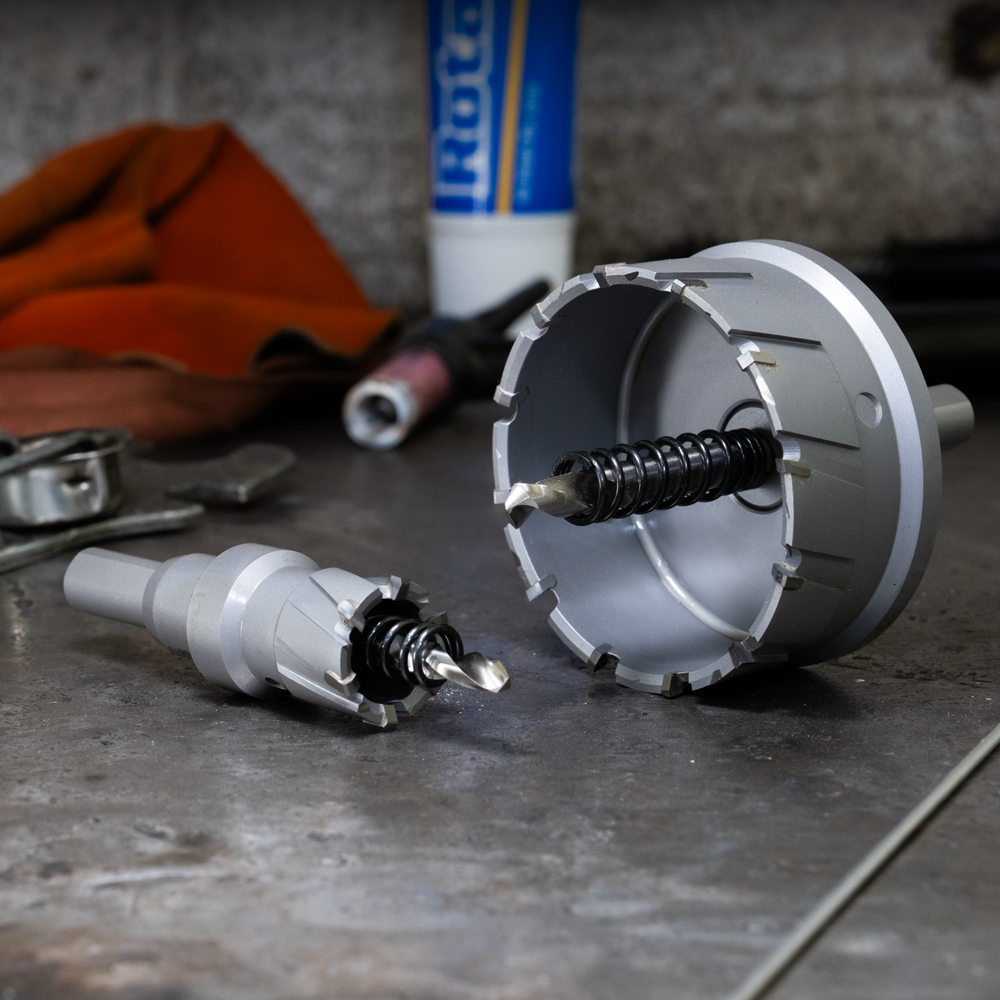

Carbide Holcutter™

Carbide Holcutters cut smooth, fast burr-free holes in all types of materials, from soft aluminum to tough-to-cut stainless and cast iron. Rugged construction for day in and day out use. All sizes have a “shoulder” to prevent plunge-thru, which is especially useful when drilling into live electrical boxes. Carbide tips provides long tool life and smooth cutting action. Carbide holcutters dramatically outlast bi-metal holes saws and step drills. All cutters include pilot, spring, and arbor. For materials up to 1″ (25mm) thick. All sizes require a 1/2″ drill chuck.

WARNING: This product contains Cobalt, a chemical known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov

DIAMETER (INCHES)DECIMAL EQUIVALENTPART NO.
5/8.625014520
11/16.687514522
3/4.750014524
13/16.812514526
7/8.875014528
15/16.937514530
11.000014532
1-1/161.062514534
1-1/81.125014536
1-3/161.187514538
1-1/41.250014540
1-5/161.312514542
1-3/81.375014544
1-1/21.500014548
1-5/81.625014552
1-3/41.750014556
22.000014562
2-1/82.125014566
2-1/42.250014568
2-3/82.375014572
2-1/22.500014574
2-5/82.625014578
2-3/42.750014580
33.000014584
3-1/43.250014586
3-3/83.37514588
3-1/23.500014590
3-5/83.625014592
3-3/43.750014594
44.000014595
4-1/44.250014596
4-3/84.375014597
4-1/24.500014598
PART NO.DESCRIPTION
14503Replacement Pilot for cutters up to 2-1/4" (3Pk)
14504Replacement Pilot for cutters 2-3/8" & up (3 Pk)
14505Replacement Spring for cutters up to 2-1/4" (3Pk)
14506Replacement Spring for cutters 2-3/8" & up (3 Pk)
