ANNULAR CUTTERS

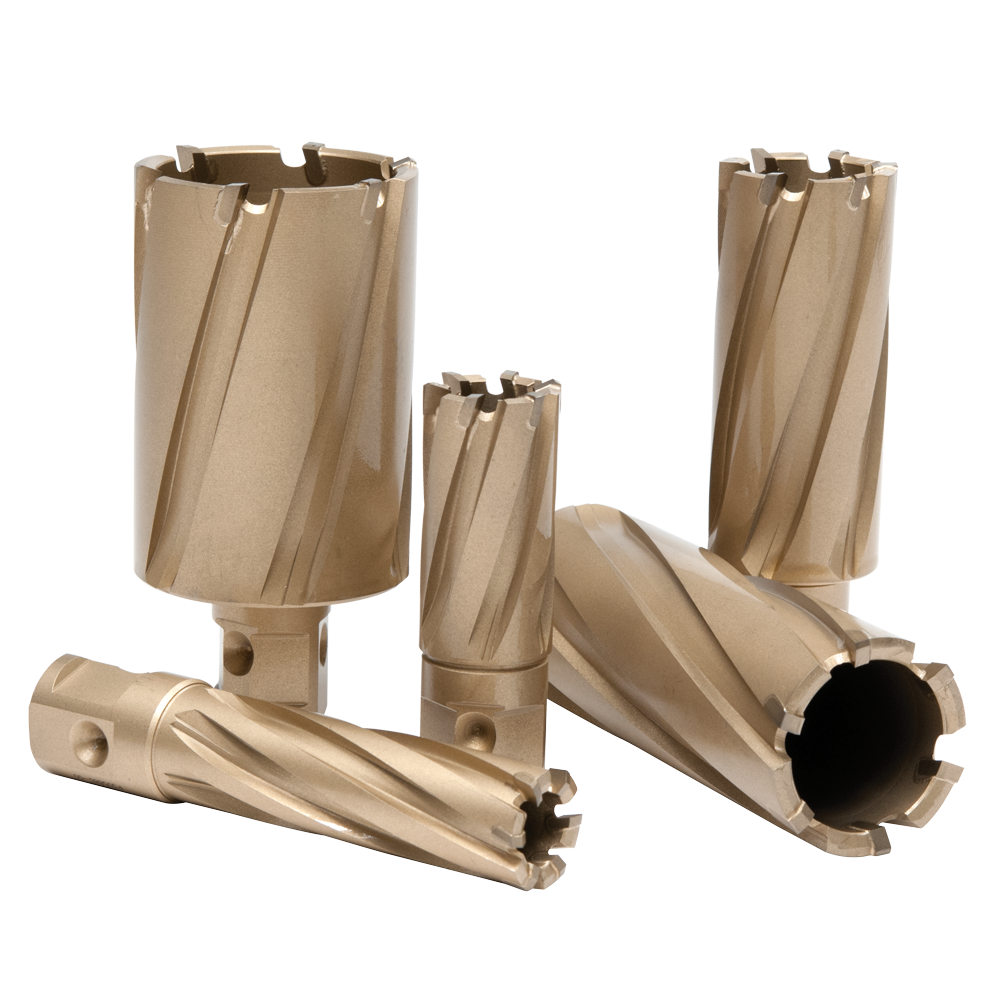

Copperhead™ Carbide Tip Cutters

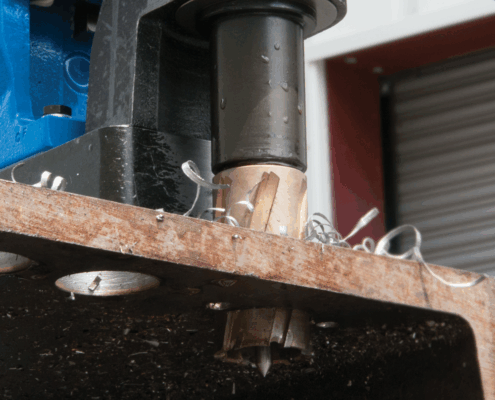

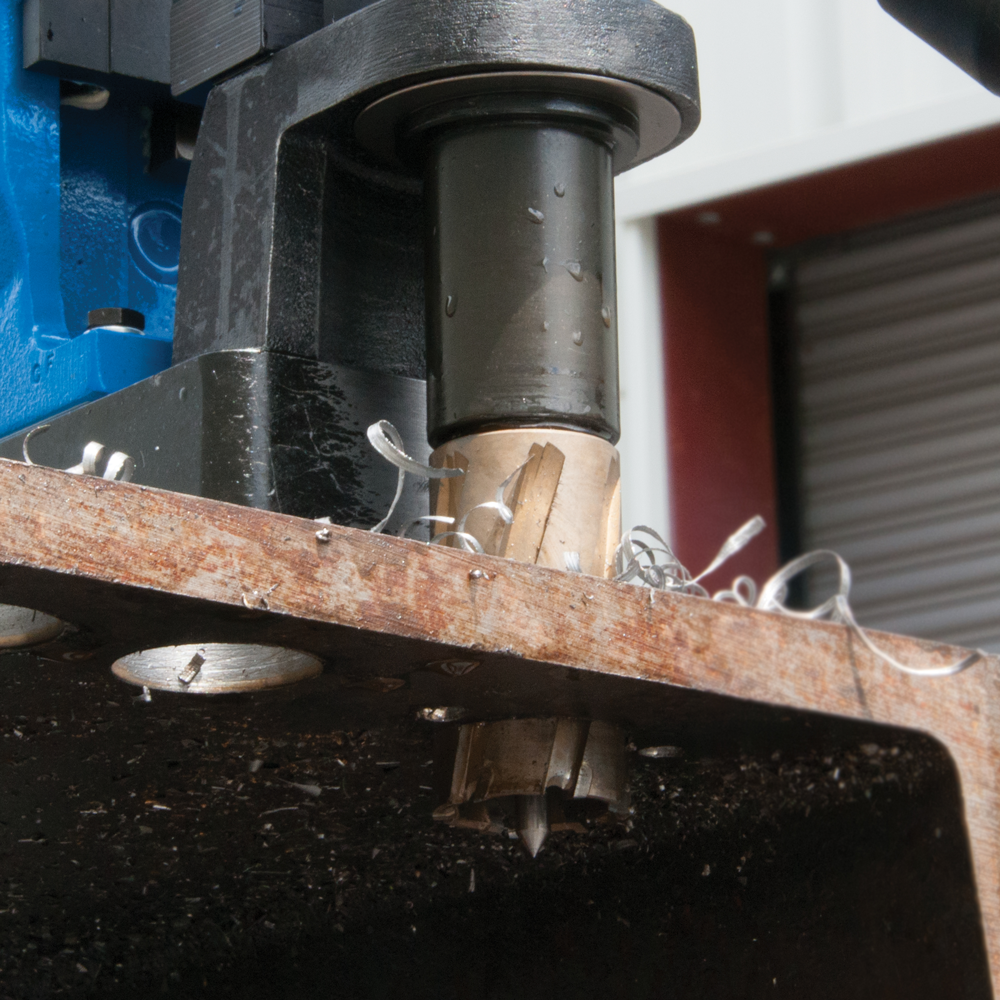

Copperhead Carbide Tip Annular Cutters feature a industrial grade carbide insert for extended tool life when used with Hougen Mag Drills on abrasive and tough-to-cut materials. The unique Hougen design also includes a special tool geometry that helps maintain better chip flow than other brands.

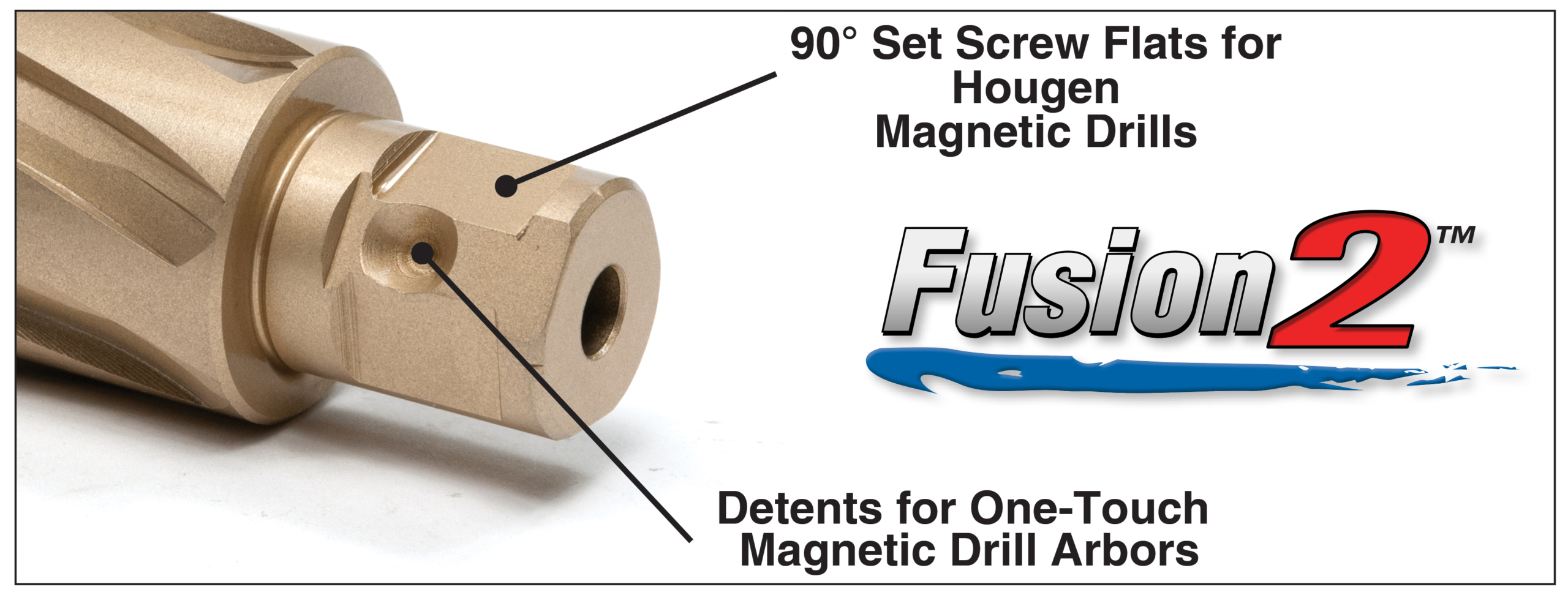

Includes the Fusion2™ Shanks
WARNING: This product contains Cobalt, a chemical known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov
CUTTER SIZES
| CUTTER DIAMETER (INCHES) | PART NO. - 1" (25mm) D.O.C. | PART NO. - 2" (50mm) D.O.C. | PART NO. - 3" (76mm) D.O.C. | PART NO. - 4" (102mm) D.O.C. | PART NO. - 6" (152mm) D.O.C. |
|---|---|---|---|---|---|
| PILOT | 10529 | 10530 | 10535 | 10540 | 10547 |
| 1/2" | - | 18216 | - | - | - |
| 9/16" | 18118 | 18218 | 3-18218 | 4-18218 | - |
| 5/8" | 18120 | 18220 | 3-18220 | 4-18220 | - |
| 11/16" | 18122 | 18222 | 3-18222 | 4-18222 | 6-18222 |
| 3/4" | 18124 | 18224 | 3-18224 | 4-18224 | 6-18224 |
| 13/16" | 18126 | 18226 | 3-18226 | 4-18226 | 6-18226 |
| 7/8" | - | 18228 | 3-18228 | 4-18228 | 6-18228 |
| 15/16" | 18130 | 18230 | 3-18230 | 4-18230 | 6-18230 |
| 1" | - | 18232 | 3-18232 | 4-18232 | 6-18232 |
| 1-1/16" | 18134 | 18234 | 3-18234 | 4-18234 | 6-18234 |
| 1-1/8" | - | 18236 | 3-18236 | 4-18236 | 6-18236 |
| 1-3/16" | - | 18238 | 3-18238 | 4-18238 | 6-18238 |
| 1-1/4" | - | 18240 | 3-18240 | 4-18240 | 6-18240 |
| 1-5/16" | - | 18242 | 3-18242 | 4-18242 | 6-18242 |
| 1-3/8" | - | 18244 | 3-18244 | 4-18244 | 6-18244 |
| 1-1/2" | - | 18248 | 3-18248 | 4-18248 | 6-18248 |
| 1-9/16" | - | 18250 | - | - | - |
| 1-5/8" | - | 18252 | 3-18252 | 4-18252 | 6-18252 |
| 1-11/16" | - | 18254 | - | - | - |
| 1-3/4" | - | 18256 | 3-18256 | 4-18256 | 6-18256 |
| 1-7/8" | - | 18260 | 3-18260 | 4-18260 | 6-18260 |
| 2" | - | 18264 | 3-18264 | 4-18264 | 6-18264 |
| 2-1/16" | - | 18266 | 3-18266 | - | - |
| 2-1/8" | - | 18268 | 3-18268 | - | - |
| 2-3/16" | - | 18270 | - | - | - |
| 2-1/4" | - | 18272 | 3-18272 | - | - |
| 2-5/16" | - | 18274 | - | - | - |
| 2-3/8" | - | 18276 | 3-18276 | - | - |
| 2-1/2" | - | 18280 | 3-18280 | - | - |
| 2-3/4" | - | 18288 | 3-18288 | - | - |
| 3" | - | 18296 | 3-18296 | - | - |
| METRIC | |||||
| 12mm | - | 18412 | - | - | - |
| 13mm | - | 18413 | - | - | - |
| 14mm | - | 18414 | - | - | - |
| 15mm | - | 18415 | - | - | - |
| 16mm | - | 18416 | - | - | - |
| 17mm | - | 18417 | - | - | - |
| 18mm | - | 18418 | - | - | - |
| 19mm | - | 18419 | - | - | - |
| 20mm | - | 18420 | - | - | - |
| 21mm | - | 18421 | - | - | - |
| 22mm | - | 18422 | - | - | - |
| 23mm | - | 18423 | - | - | - |
| 24mm | - | 18424 | - | - | - |
| 25mm | - | 18425 | - | - | - |
| 26mm | - | 18426 | - | - | - |
| 27mm | - | 18427 | - | - | - |
| 28mm | - | 18428 | - | - | - |
| 29mm | - | 18429 | - | - | - |
| 30mm | - | 18430 | - | - | - |
| 31mm | - | 18431 | - | - | - |
| 32mm | - | 18432 | - | - | - |
| 33mm | - | 18433 | - | - | - |
| 34mm | - | 18434 | - | - | - |
| 35mm | - | 18435 | - | - | - |
| 36mm | - | 18436 | - | - | - |
| 37mm | - | 18437 | - | - | - |
| 38mm | - | 18438 | - | - | - |
| 39mm | - | 18439 | - | - | - |
| 40mm | - | 18440 | - | - | - |
| 41mm | - | 18441 | - | - | - |
| 42mm | - | 18442 | - | - | - |
| 43mm | - | 18443 | - | - | - |
| 44mm | - | 18444 | - | - | - |
| 45mm | - | 18445 | - | - | - |
| 46mm | - | 18446 | - | - | - |
| 47mm | - | 18447 | - | - | - |
| 48mm | - | 18448 | - | - | - |
| 49mm | - | 18449 | - | - | - |
| 50mm | - | 18450 | - | - | - |
| 51mm | - | 18451 | - | - | - |
| 52mm | - | 18452 | - | - | - |
| 53mm | - | 18453 | - | - | - |
| 54mm | - | 18454 | - | - | - |
| 55mm | - | 18455 | - | - | - |
| 56mm | - | 18456 | - | - | - |
| 57mm | - | 18457 | - | - | - |
| 58mm | - | 18458 | - | - | - |
| 59mm | - | 18459 | - | - | - |
| 60mm | - | 18460 | - | - | - |
CUTTER KITS
Copperhead Carbide Cutter Kits
| PART NO. | DESCRIPTION | D.O.C. |
|---|---|---|

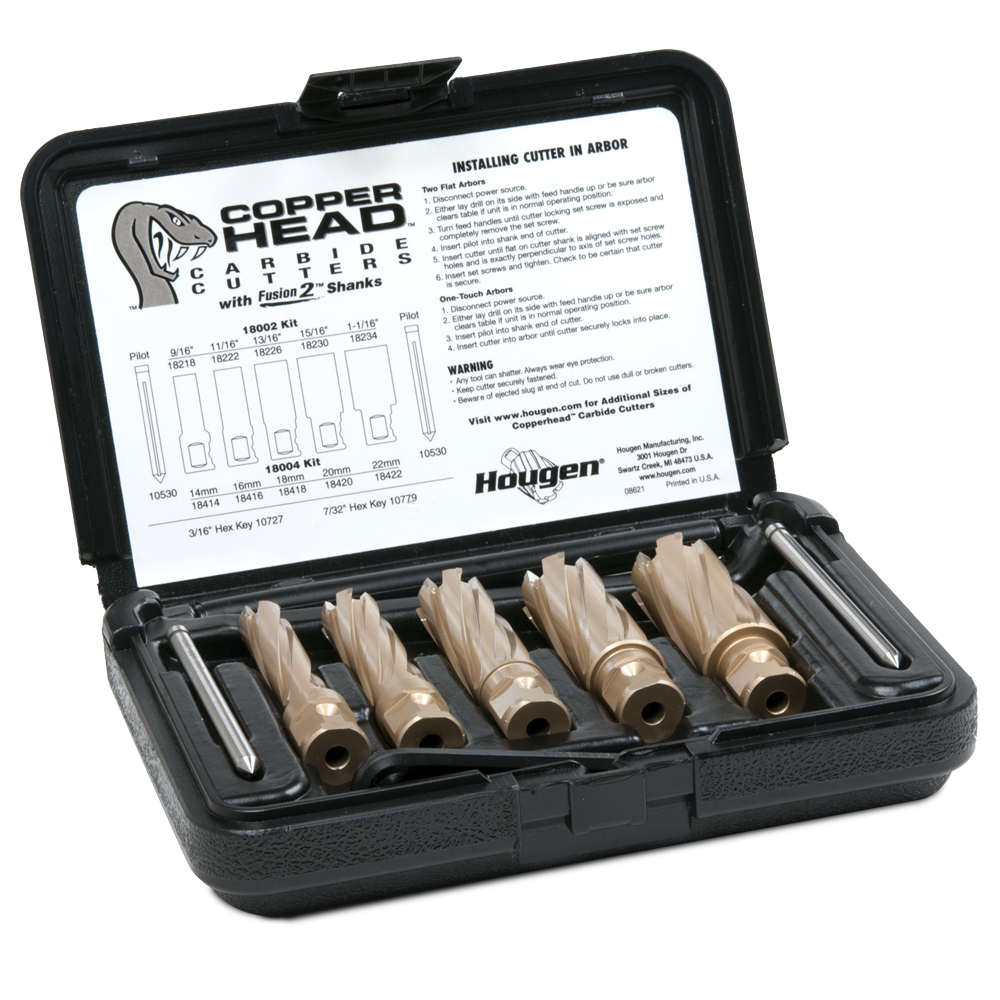

| 18002 | Plastic tool case contains (5) Cutters (9/16, 11/16, 13/16, 15/16, & 1-1/16") (2) Pilots, & (2) wrenches | 2" |
| 18004 | Plastic tool case contains (5) Cutters (14mm,16mm, 18mm, 20mm, 22mm) (2) Pilots, & (2) wrenches | 50mm |
| 18981-1 | Plastic tool case contains (3) Pilots and (3) Cutters (9/16, 11/16 & 13/16") | 1" |
| 18983-1 | Plastic tool case contains (3) Pilots and (3) Cutters (11/16, 13/16 & 15/16") | 1" |
| 18985-1 | Plastic tool case contains (3) Pilots and (3) Cutters (13/16, 15/16 & 1-1/16") | 1" |
| 18981-2 | Plastic tool case contains (3) Pilots and (3) Cutters (9/16, 11/16 & 13/16") | 2" |
| 18982-2 | Plastic tool case contains (3) Pilots and (3) Cutters (5/8, 3/4 & 7/8") | 2" |
| 18983-2 | Plastic tool case contains (3) Pilots and (3) Cutters (11/16, 13/16 & 15/16") | 2" |
| 18985-2 | Plastic tool case contains (3) Pilots and (3) Cutters (13/16, 15/16 & 1-1/16") | 2" |
| 18983-3 | Plastic tool case contains (3) Pilots and (3) Cutters (11/16, 13/16 & 15/16") | 3" |
| 18985-3 | Plastic tool case contains (3) Pilots and (3) Cutters (13/16, 15/16 & 1-1/16") | 3" |
