MAGNETIC DRILLS

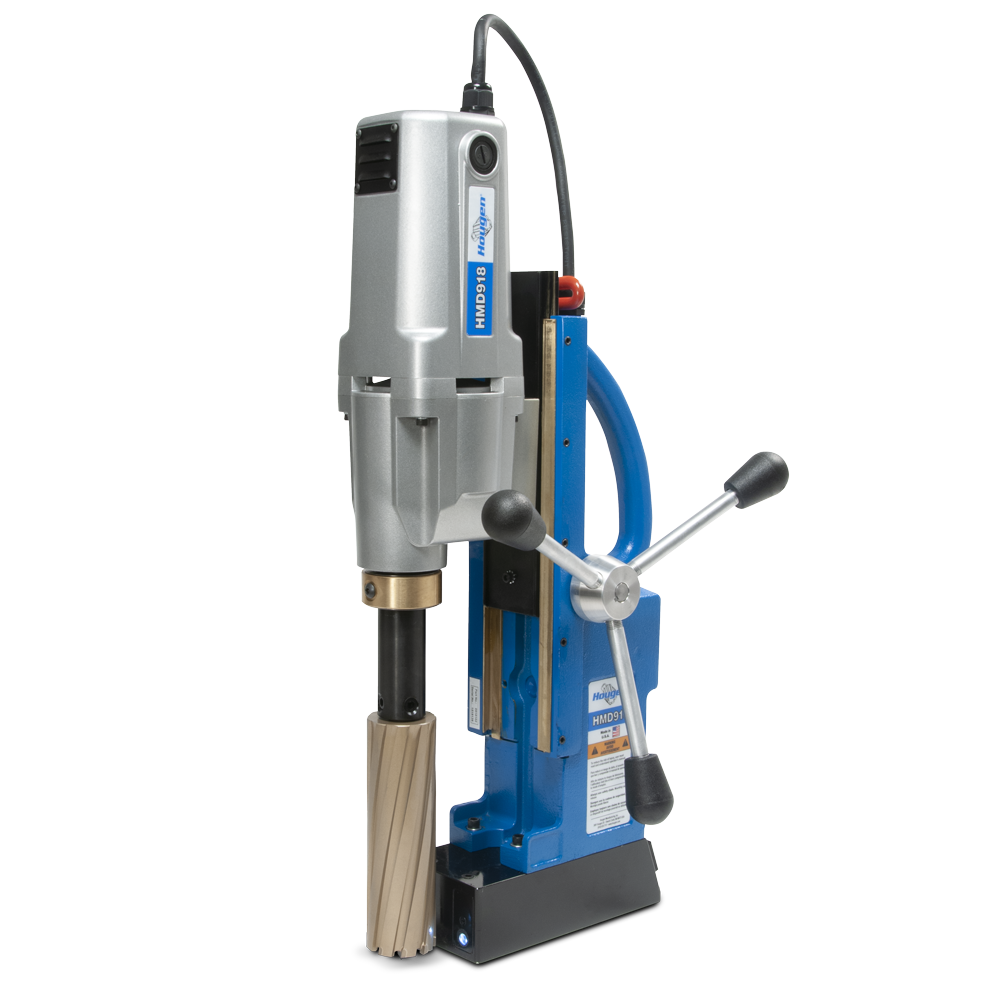

HMD918 Magnetic Drill

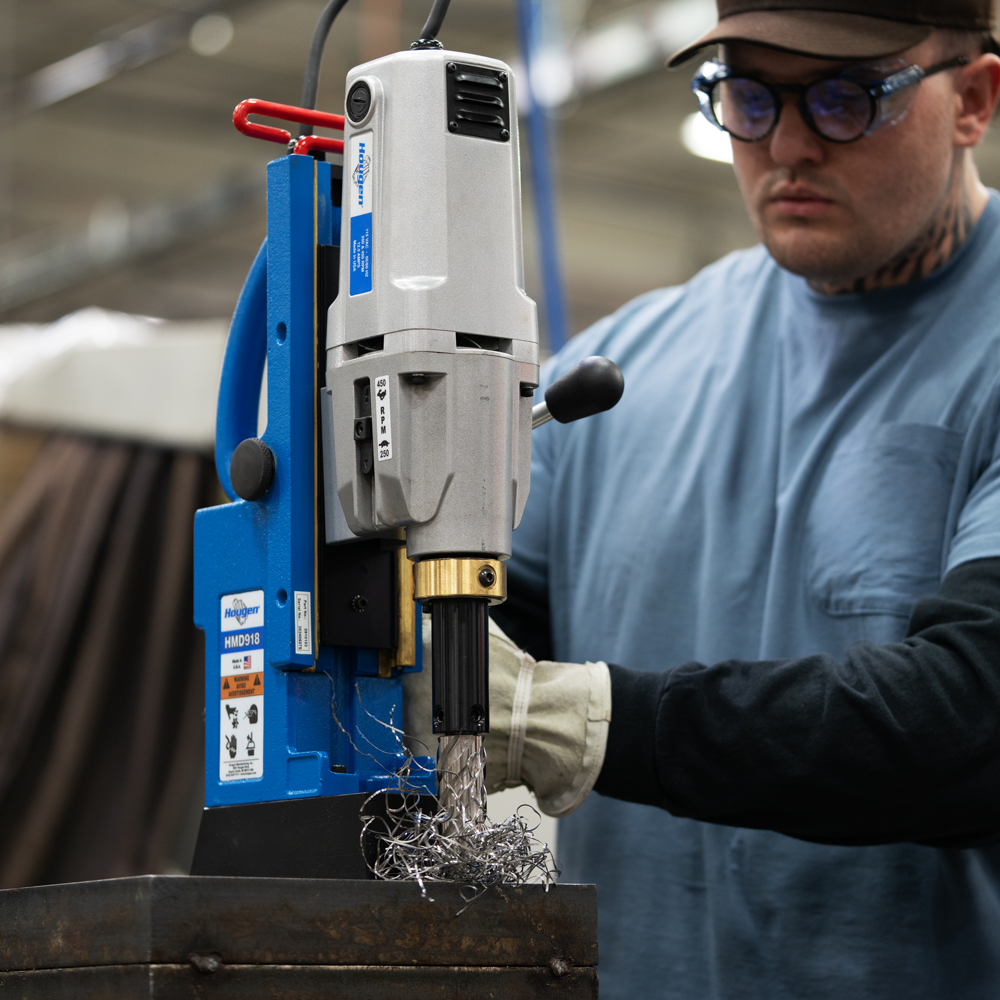

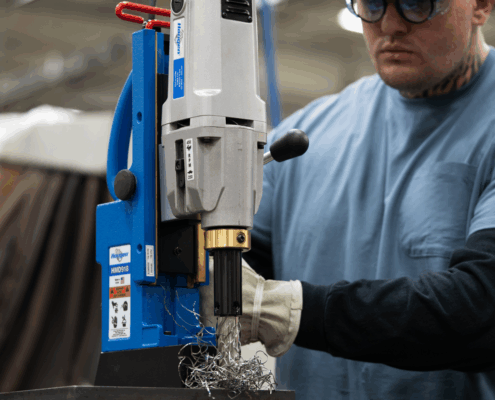

Drill holes up to 6″ deep, multiple stacked plates or extend your hole reach capability
- 2-3/8″ x 6″ capacity
- Two Speed gear box – 250 & 450 RPM
- Pilot light
- Two stage magnet – 30% increase in power when motor is turned on

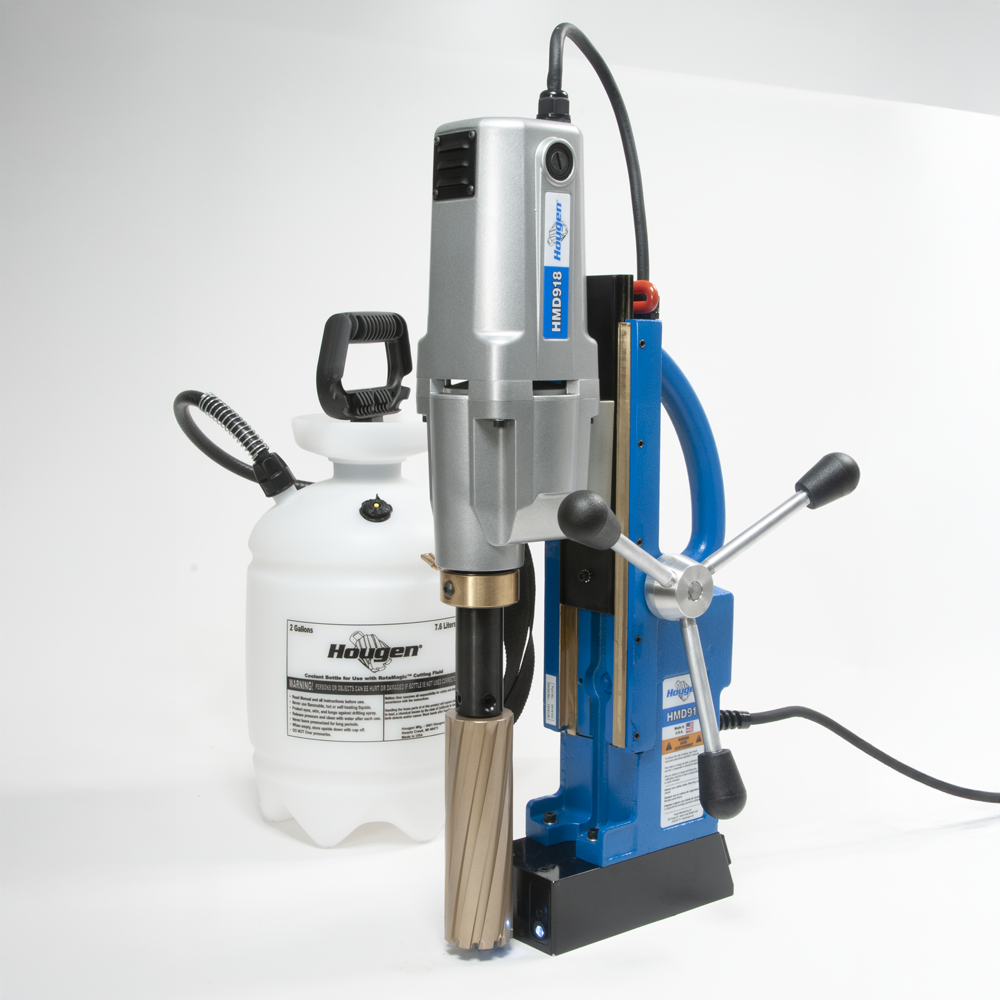

- Pressurized coolant system
- Many accessories are available for a portable machine shop including: drill chucks, tapping, countersink, and more…
- Feed handles quickly change from side to side
- Lift detector safety system
- Rear mounted controls
- Two year warranty

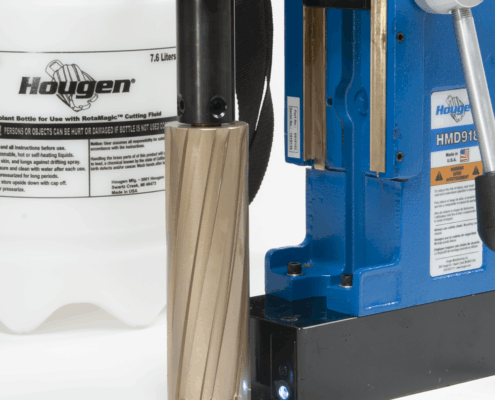

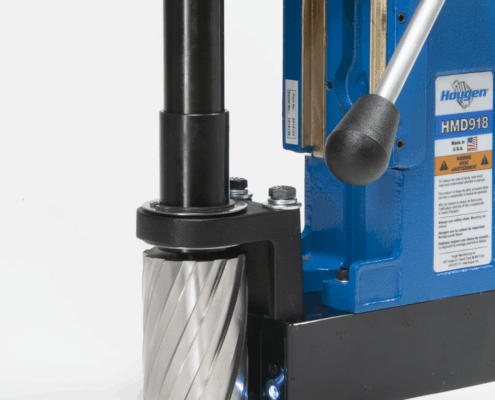

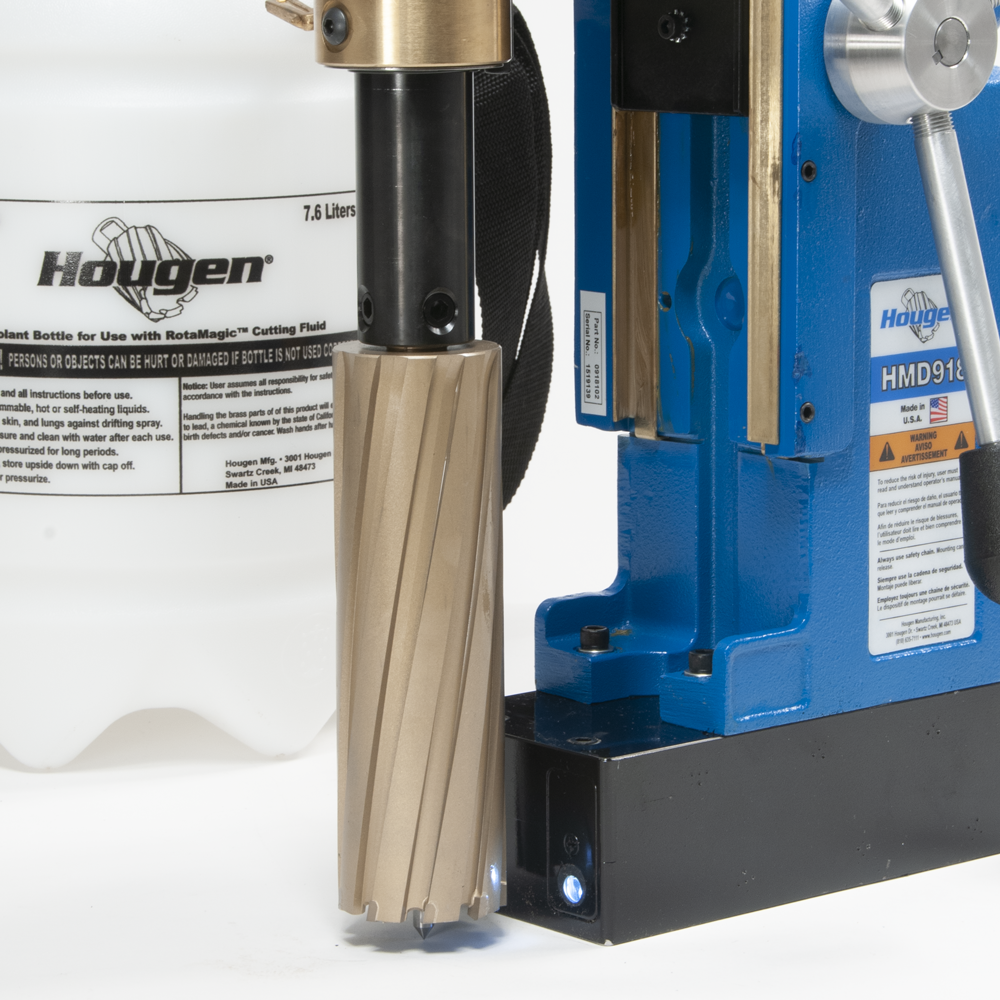

Now includes an additional arbor for positive slug ejection when using annular cutters up to 3″ deep.
Learn More…
The One Drill to Tackle the Widest Variety of Jobs Around the Fab Shop
SPECIFICATIONS
MODELS
Drill includes: pint of coolant, safety chain, & hex wrenches.
CUTTERS
“12,000-Series” Annular Cutters
The original mag drill annular cutter, Hougen’s "12,000-Series" are the standard for hole making. Sizes are available up to 3-1/16" in diameter and up to 6" depth of cut.[Learn More]
“12,000-Series” TiN Coated Cutters
TiN Coated cutters increase tool life, reduce friction, and operate at cooler temperatures. For materials up to 325 BHN or gummy materials. Special Sizes and coatings are available... [Learn More]
Hougen® Xtreme Cobalt™ Annular Cutters
Built for extreme conditions and tough materials. Made from premium M42 and IronEdge™ coated. Performance, extended tool life, and reliability in the most demanding applications.[Learn More]
Copperhead™ Carbide Tip Cutters
Carbide Tipped Cutters for extended tool life in abrasive & tough materials. Up to 6" deep and diameters to 3".[Learn More]
Hole Enlarging Pilots – “12,000 SERIES”
Sometimes things happen. These tools allow you to take an existing hole and re-drill it to the larger correct size.[Learn More]
ACCESSORIES
RotaMagic™ Super Concentrated Cutting Fluid
RotaMagic™ is water soluble, biodegradable cutting lubricant that extends tool life and improves cutter performance.[Learn More]
Slick-Stik™ Lubricant
Stick lubricant for easy application, providing superior adhesion to the tool, assuring thorough coverage and increased tool life.[Learn More]
RotaFoam™ Cutting Fluid
Extremely heavy-duty, high performance foamy lubricant for all types of metals and metal working applications.[Learn More]
RotaGel™ Cutting Lube
Environmentally friendly lubricant for all types of metals and metal working applications. Biodegradable & Non-Toxic.[Learn More]
Drill Chucks for Mag Drills
Use twist drills with your Hougen mag drill by installing a drill chuck. Two sizes are available.[Learn More]
Twist Drill Adapter
Drill small diameter holes without removing the arbor. The Twist drill Adapter Kit includes everything you need.[Learn More]
Tapping Kits
Tapping holes with your Hougen mag drill is a extremely easy using one of our Tapping Kits.[Learn More]
Countersink Kit
The 82° Countersink is double fluted with carbide inserts for maximum cutting action and long life.[Learn More]
Pipe Adapter Kits
Drill pipe and tubing with the Hougen Pipe Adapter Kit. Quickly attach to your magnetic drill for positive non-slip centered positioning.[Learn More]
Arbor Extender
When extended reach is necessary, Hougen offers 1" and 2" Arbor Extenders that fit 3/4" shank cutter.[Learn More]
Hole Enlarging Pilots – “12,000 SERIES”
Sometimes things happen. These tools allow you to take an existing hole and re-drill it to the larger correct size.[Learn More]
#2 Morse Taper Adapter
Use #2 Morse Taper twist drills, reamers and accessories with HMD918 & HMD920 magnetic drills.[Learn More]

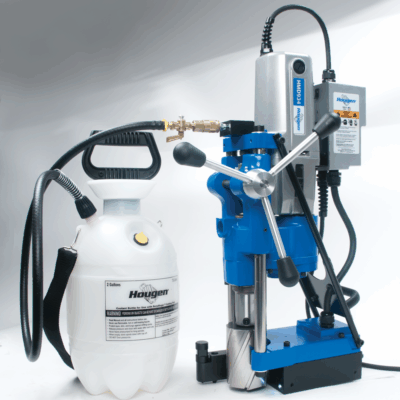

Pressurized Coolant System
The Pressurized Coolant System is used for deep hole and extended drilling times. Works on select mag drills.[Learn More]
