Other Tooling for Annular Cutters

Use Hougen annular cutters in drill presses, machine tools and in may other ways to save time and increase productivity.

ARBORS FOR DRILL PRESSES MACHINE TOOL ARBORS HOLE ENLARGING PILOTS

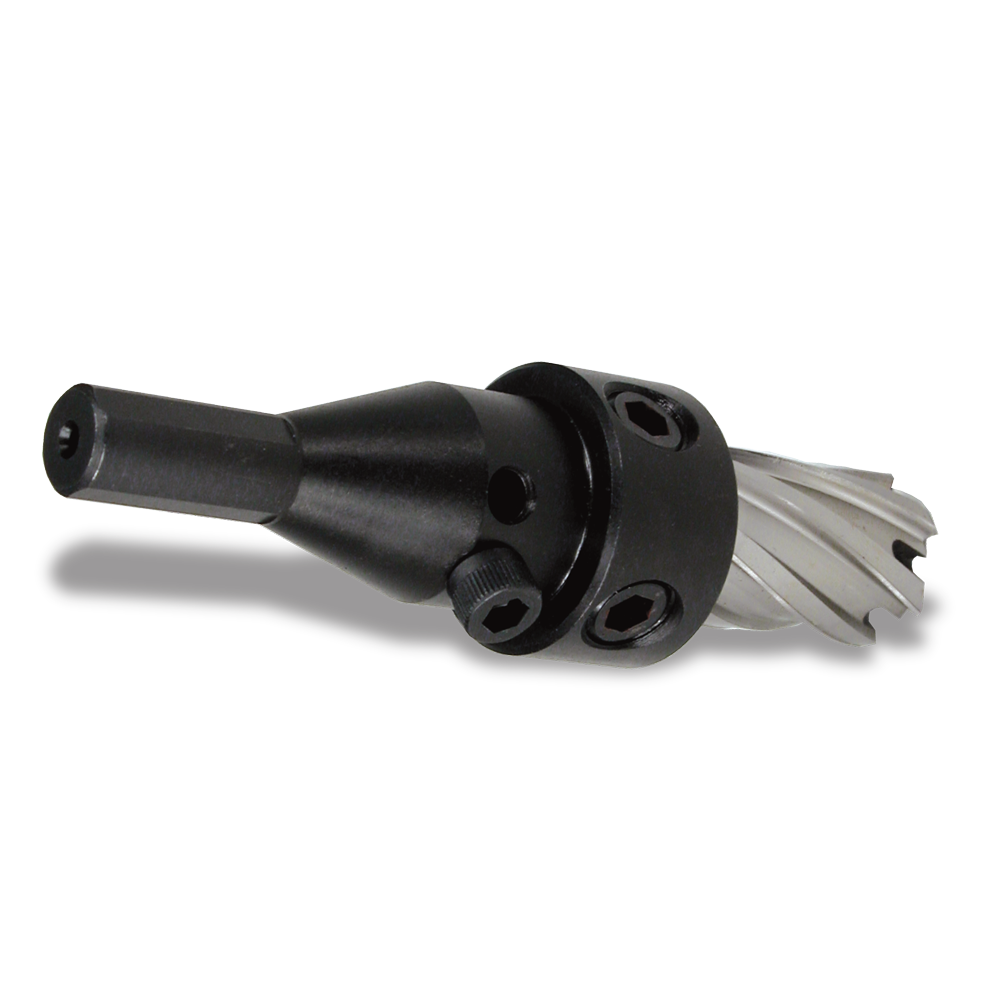

Drill Press & Stationary Tool Arbor

Use Hougen “12,000-Series” Cutters with stationary tools and drill presses. Triple flatted shank fits 1/2″ drill chucks. Uses 1″ (25mm) depth of cut “12,000-Series” Cutters for materials up to 1/2″ (12.7mm) thick.

(Not for use with Copperhead Cutters)

PART NO.	DESCRIPTION
11016	Arbor Assembly for 3/4" Shank Cutters Pilot not included.
11041	Body for Assembly 11016
10623	1/4 - 28 Set Screw
11065	Optional Cup Stop for 1/2" Shank Cutters
11259	Optional Cup Stop for 3/4" Shank Cutters
11069	Ejector Spring
40222	7/16 - 14 x 0.31 Set Screw (2x)
11022	Starter Pilot for 7/16 - 9/16" & 12 - 15mm Cutters
11031	Starter Pilot for 5/8 - 2-1/16" & 16 - 52mm Cutters
11032	Starter Pilot for 1/2 - 11/16" & 13 - 18mm Cutters (Pilot for Old Style Cutters)

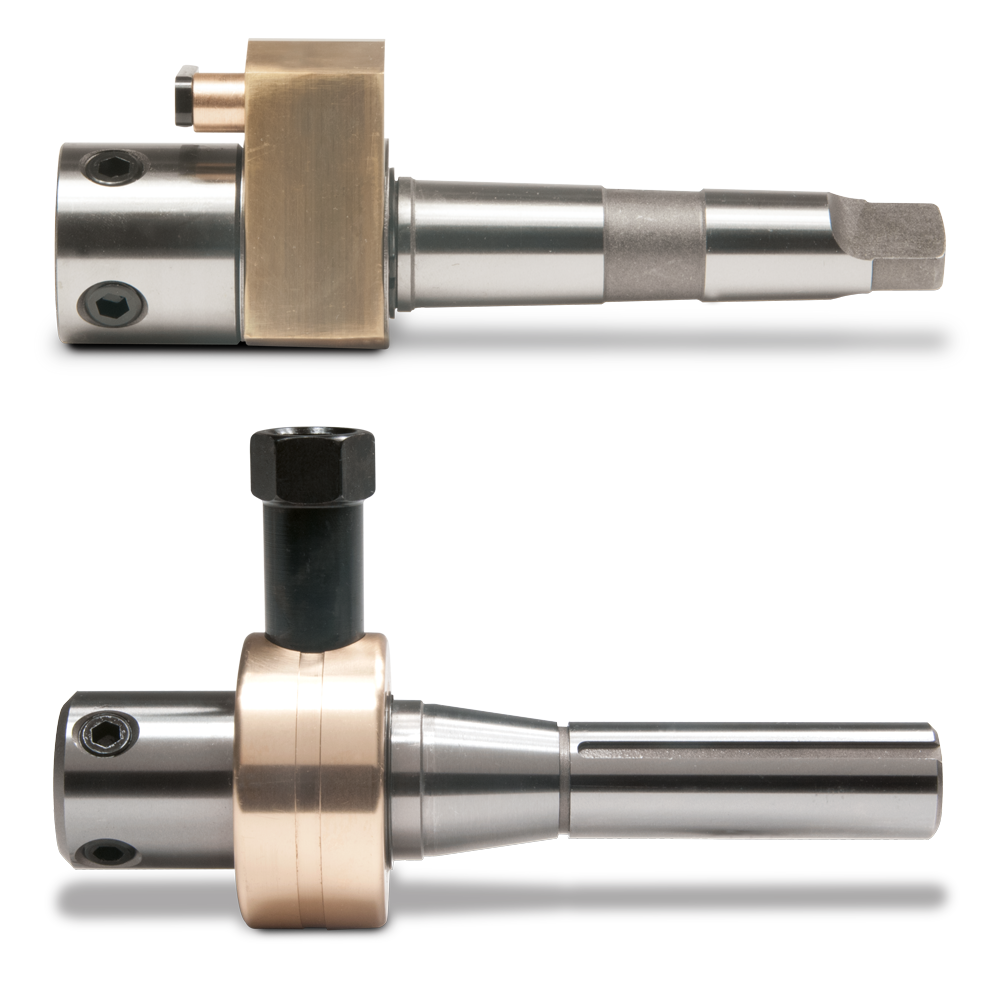

“12,000-SERIES” ARBORS FOR MACHINE TOOLS

Convert manual and CNC machines such as drill presses, lathes, and mills into fast holemakers. Three styles of holders including R-8, Straight, and Morse taper accommodate Hougen’s “12,000-Series” Cutters for materials up to 2″ thick. Available with coolant inducer assembly.

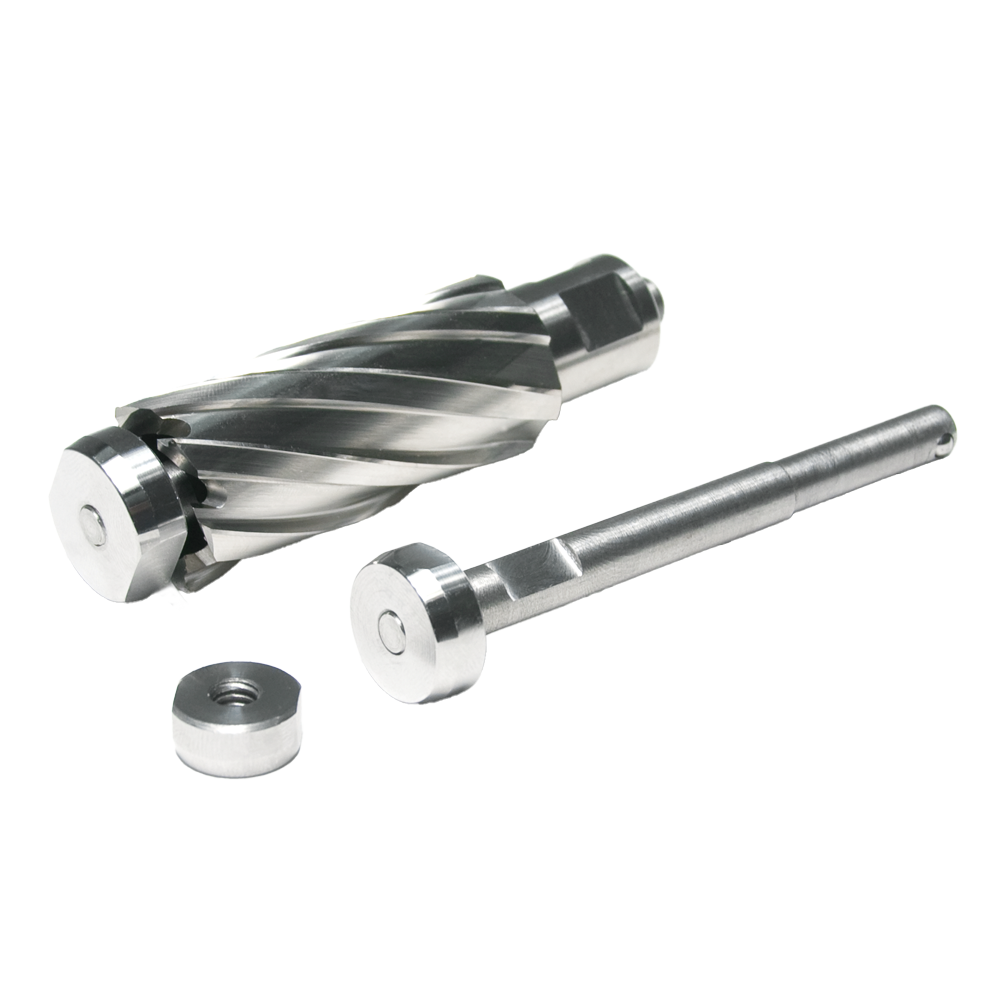

HOLE ENLARGING PILOTS

Take an existing hole and make it larger. Available in three select sizes. Replaceable nose screws on to the end. (Cutters Sold Separately – Only for use w/ 2″ DOC Cutters)

How They Work

Take the correct size cutter and insert the pilot into the cutter. Install the cutter into your drill. Now place the nose of the pilot into your current hole. Add lubricant and drill your hole as you normally would. Your cutter stays centered and redrills the correct size hole.

Made in the USA

PART NO.	DESCRIPTION
07370	Replaceable Pilot
07373	11/16" Dia. Pilot Assy
07372	13/16" Dia. Pilot Assy
07371	15/16" Dia. Pilot Assy
07368	11/16" Replaceable Nose
07367	13/16" Replaceable Nose
07366	15/16" replaceable Nose
09111	Hole Enlarging Pilot Kit - Includes one of each nose and a pilot in a plastic case
