ANNULAR CUTTERS

RotaLocâ„¢ Cutters for the HMD130 & HMD115

Drill holes in truck frames and for general metal fabrication with the 3/4″ depth of cut RotaLoc cutters. Designed for use with the HMD130 and HMD115 magnetic drills. They feature a bayonet style twist lock shank for fast cutter changes without using tools. Each cutter includes Stack-Cut geometry which allows for drilling through two or more plates at one time.

Available in Two Styles:

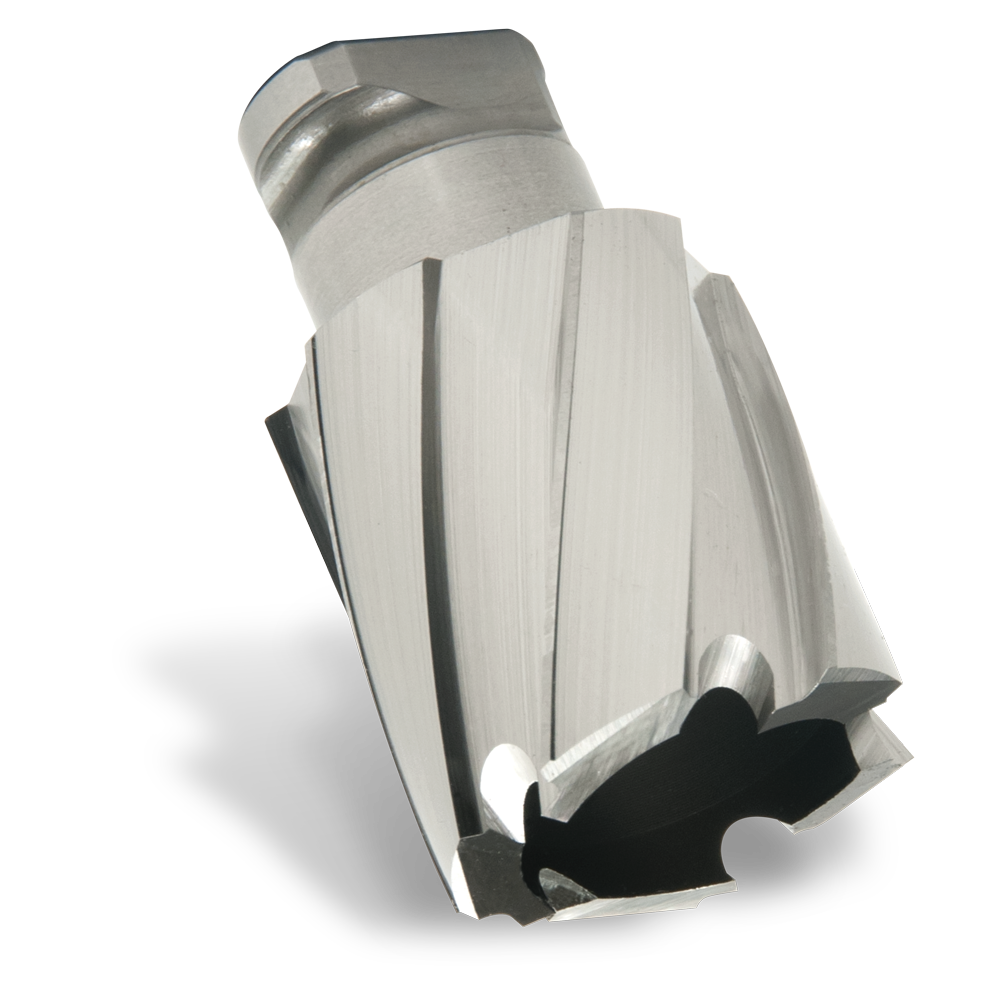

  • M42 HSS – Resharpenable – Made in USA

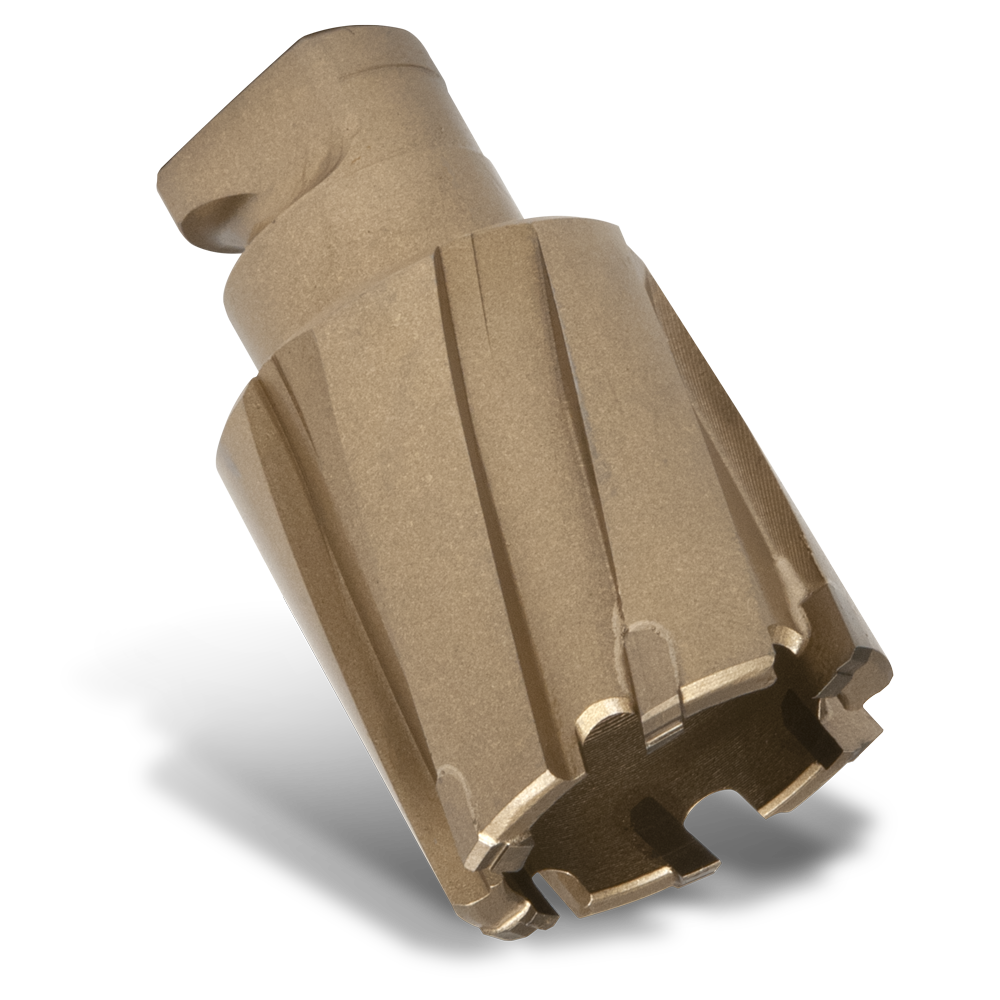

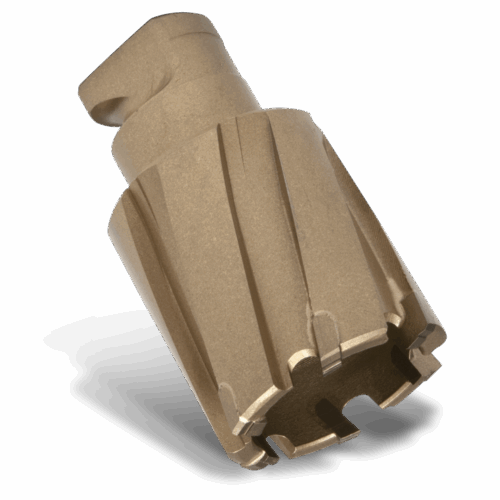

  • Carbide Tipped – Tough to Cut Materials

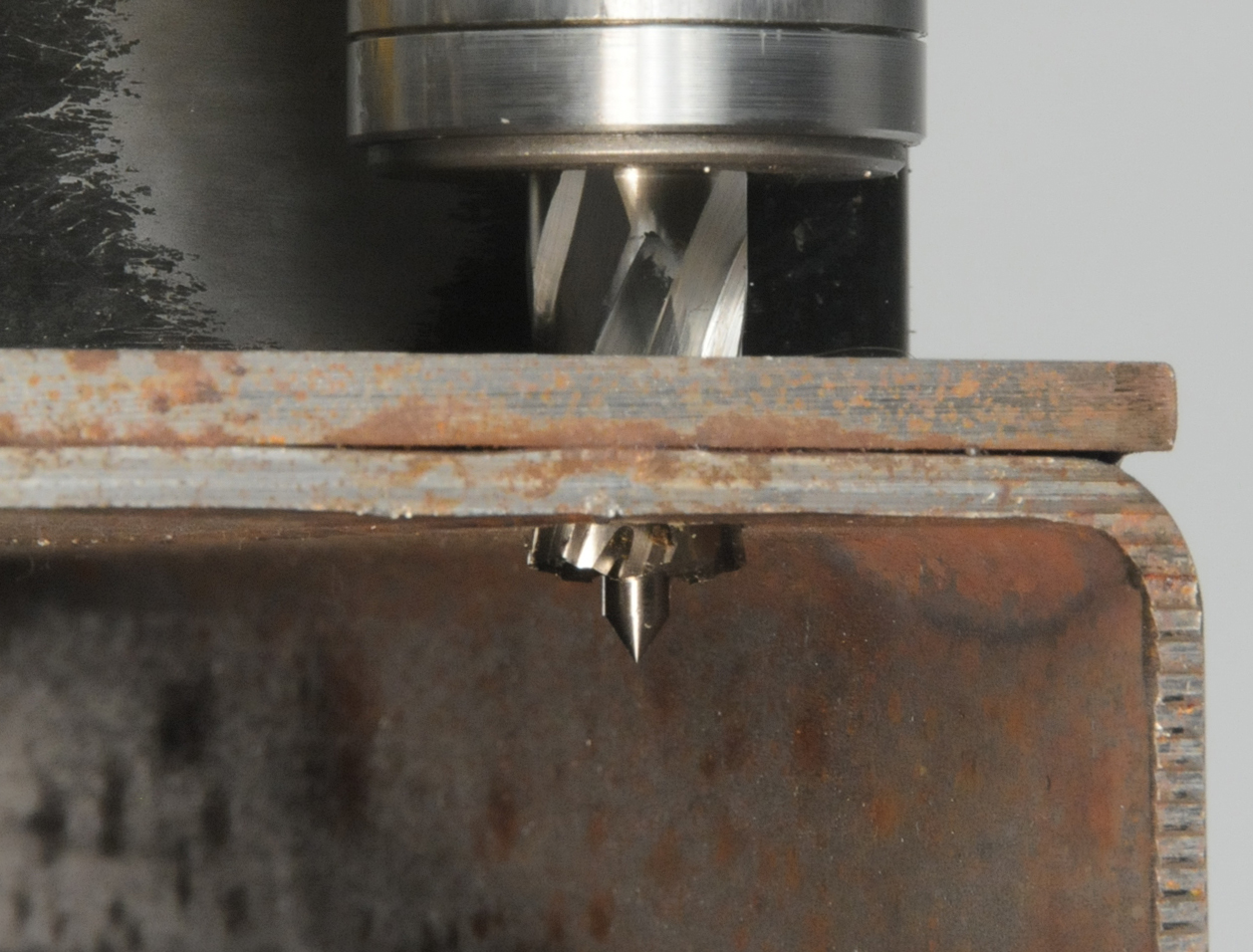

Stack Cut Geometry – Drill Two or More Pieces at One Time!

For optimum cutter tool life and cutter efficiency use Slick-Stikâ„¢ lubricant, RotaFoam or RotaGelâ„¢ Cutting Lube.

WARNING: This product contains Cobalt, a chemical known to the State of California to cause cancer and reproductive harm. For more information, go to www.P65Warnings.ca.gov

DIAMETER (INCHES)M42 PART NOCARBIDE PART NO
1/217116----
9/161711818-17118
5/817120----
11/1617122----
3/417124----
13/161712618-17126
7/81712818-17128
15/161713018-17130
11713218-17132
1-1/161713418-17134
METRIC
12mm17300----
13mm17302----
14mm1730418-17304
15mm1730618-17306
16mm1730818-17308
17mm1731018-17310
18mm1731218-17312
20mm1731618-17316
22mm1732018-17320
24mm1732418-17324
26mm1732818-17328

RotaLoc Cutter Kits

PART NO.DESCRIPTIOND.O.C.

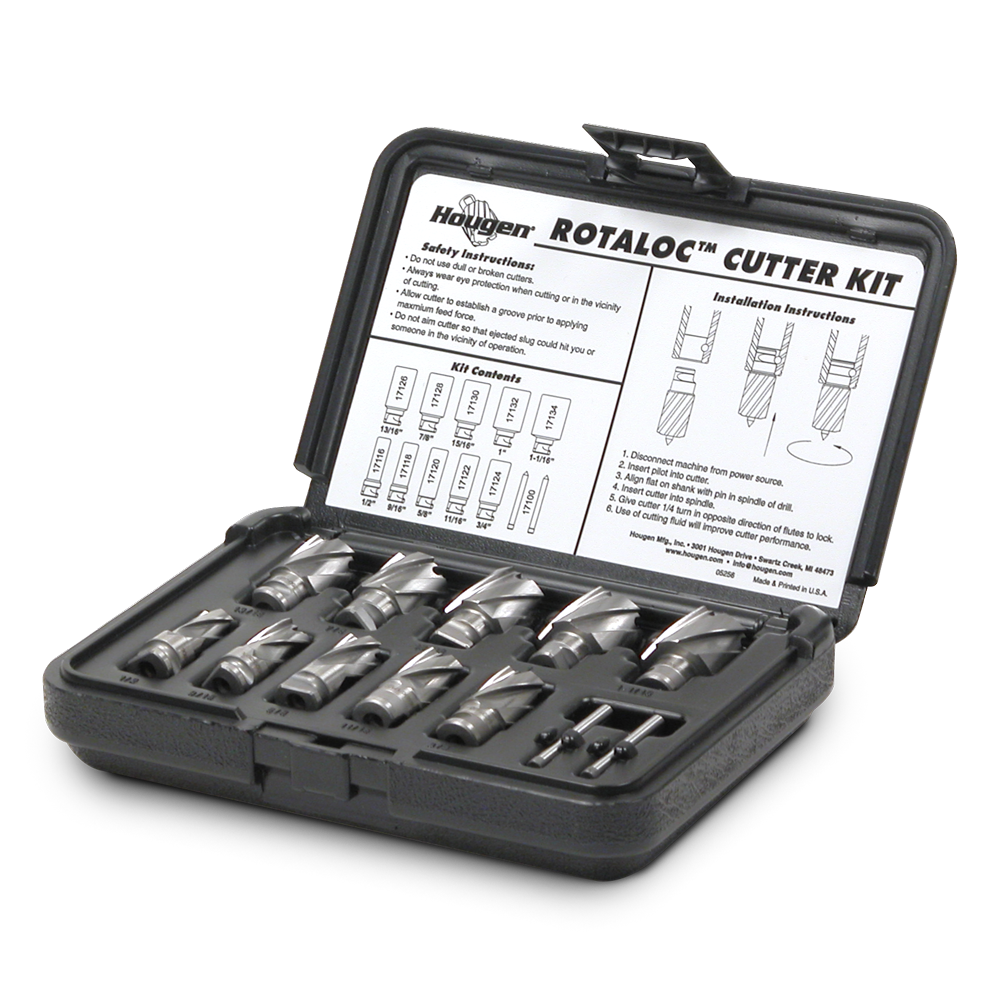

17001Kit contains (10) RotaLoc cutters: 1/2, 9/16, 5/8, 11/16, 3/4, 13/16, 7/8, 15/16, 1 & 1-1/16" dia., plus (2) Pilots in a sturdy plastic case (For HMD115)3/4"
17700Kit contains (3) RotaLoc cutters: 1/2, 5/8, 3/4" dia., plus (3) Pilots in a sturdy plastic case (For HMD115)3/4"
17701Kit contains (3) RotaLoc cutters: 9/16, 11/16, 13/16" dia., plus (3) Pilots in a sturdy plastic case (For HMD115)3/4"
PART NO.DESCRIPTION
17100Pilot for HMD115 (RotaLoc Cutter Only)
17101Spring Ejection Pilot (Old style HMD100/115 drills Only)
17810Pilot for HMD130 /150
